Stop

The Stop activity terminates the workflow execution immediately.

Purpose​

Use the Stop activity to:

  • End workflow execution at a specific point
  • Terminate workflows that reach a timeout condition
  • Cancel workflows when certain conditions are met
  • Cleanly exit workflows without errors

Configuration​

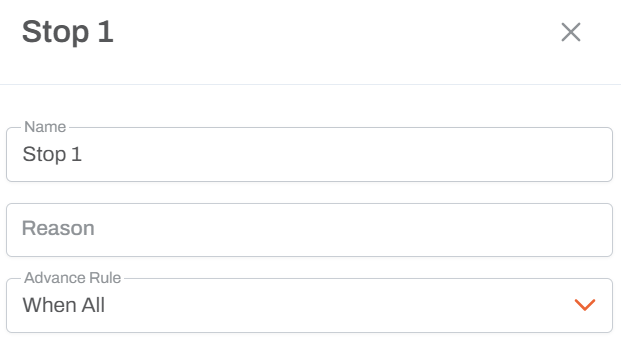

Stop Activity Editor

Name​

  • Activity Name: Unique identifier for this stop activity in the workflow
  • Used to reference the activity in workflow design and execution logs
  • Helps identify different stop points when you have multiple stop activities

Reason​

  • Text Field: Describes why the workflow was stopped
  • Purpose: Documents the termination reason for audit and debugging
  • Logging: The reason is recorded in the workflow execution log
  • Visibility: Can be reviewed in the workflow history and logs
  • Supports single-line or short text descriptions

Advance Rule​

Determines when this activity is triggered based on predecessor activities:

  • When All: Activity executes only after all predecessor activities complete (default)
  • When Any: Activity executes when any predecessor activity completes
  • When First: Activity executes the first time any predecessor completes, then ignores others

Example Reasons​

  • "Data load not completed within timeout period"
  • "Approval rejected - workflow cancelled"
  • "No more clients to process"
  • "Invalid parameters provided"
  • "User did not complete action within 24 hours"
  • "No data available for processing"

Behavior​

  • Immediate Termination: All workflow execution stops when this activity is reached
  • No Error State: The workflow ends normally, not as a failure
  • Logging: Stop reason is logged for audit purposes
  • Active Tasks: Any active tasks in other branches are cancelled

Usage Patterns​

Timeout with Delay​

┌─── User Action
│
├─── Delay (12 hours) ───┐
│                        ├─── Stop (Reason: "No data load within timeout")
└────────────────────────┘

Conditional Stop​

If condition ──[No]──> Stop (Reason: "Condition not met")
            │
           [Yes]
            │
        Continue...

End of Loop​

Get Next Item ──> If (no more items) ──> Stop (Reason: "All items processed")
                            │
                          [Yes]
                            │
                      Process Item ──> Loop back

Usage Notes​

  • Use descriptive reasons to make workflow logs clear
  • Stop is not an error - it's a normal termination
  • Helps prevent accumulation of incomplete workflow instances
  • Essential for timeout patterns in scheduled workflows
  • Can be used at the end of conditional branches that should not continue

Comparison to Workflow Completion​

  • Stop: Manually terminates execution at a specific point
  • Natural Completion: Workflow reaches the end with no more activities
  • Both result in completed workflow status
  • Stop provides explicit reason logging

Best Practices​

  • Always provide a clear, meaningful reason
  • Use Stop to handle edge cases and timeout scenarios
  • Include context in the reason (e.g., date, parameter values)
  • Review stop reasons regularly to identify workflow issues
