Lock Subprocess

The Lock Subprocess activity provides mutual exclusion for activities that must not run in parallel, even across different workflow instances.

Purpose

Use the Lock Subprocess when you need to:

• Prevent concurrent execution of critical operations
• Serialize access to shared resources
• Protect stored procedures that can't run simultaneously
• Ensure data consistency when multiple workflow paths might conflict

How It Works

Locking Mechanism

• Lock Name: Identifies the lock (e.g., "DataLoadProcess")
• Mutual Exclusion: Only one lock subprocess with the same lock name can execute at a time
• Queue: Other instances wait until the lock is released
• Timeout: Maximum time to hold the lock (up to 300 seconds)

Scope

• Tenant-Wide: Locks apply across all workflows in the tenant
• Cross-Workflow: Different workflows using the same lock name will serialize
• Instance-Wide: Multiple instances of the same workflow respect the lock

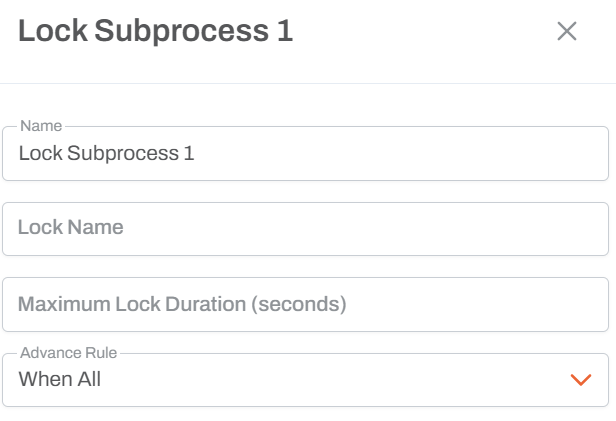

Configuration

Lock Settings

• Lock Name: String identifier for the lock (any name you choose)
• Maximum Duration: Up to 300 seconds (5 minutes)

Example Configuration

Lock Name: "ModelCalculationLock"
Maximum Duration: 300 seconds

Common Use Cases

Protecting Stored Procedures

Lock Subprocess: "ModelCalculation"
  └─ Stored Procedure: Calculate Model

Why: Stored procedure uses temporary tables that conflict if run in parallel

Shared Resource Access

Lock Subprocess: "StagingTableAccess"
  ├─ Clear Staging Table
  ├─ Load New Data
  └─ Process Staging Data

Why: Multiple instances shouldn't manipulate the staging table simultaneously

Model Loading

Lock Subprocess: "ETLProcess"
  └─ ETL: Load from Staging to Model

Why: ETL processes that modify the model should run sequentially

Execution Behavior

First Instance (Acquires Lock)

1. Reaches Lock Subprocess
2. Acquires lock immediately
3. Executes internal activities
4. Releases lock when complete

Second Instance (Waits)

1. Reaches Lock Subprocess with same lock name
2. Waits until first instance releases lock
3. Acquires lock when available
4. Executes internal activities
5. Releases lock when complete

Race Condition

• From your perspective, it's random which instance gets the lock first
• Internally, it's the first to request the lock
• Both instances will complete, but sequentially

Example Scenario

Multiple Parallel Paths

Path A: Lock Subprocess "ETL" ──> Stored Procedure
Path B: Lock Subprocess "ETL" ──> Stored Procedure

Execution:

1. Both paths execute in parallel
2. Path A reaches lock first, acquires it
3. Path B reaches lock, must wait
4. Path A completes stored procedure, releases lock
5. Path B now acquires lock and executes
6. Path B completes and releases lock

Usage Notes

• Timeout: If maximum duration is reached, the lock is forcibly released
• Performance: Locking can slow workflow execution - use judiciously
• Deadlocks: Be careful with multiple different locks to avoid deadlock scenarios
• Same Lock Name: Ensure all instances that need serialization use exactly the same lock name
• Case Sensitive: Lock names are case-sensitive

Historical Use Case

At a previous implementation (Fluence):

• Model calculation engine used temporary tables
• Running two instances simultaneously caused data corruption
• One stored procedure would write to temp tables while another deleted from them
• Lock Subprocess ensured only one calculation ran at a time

When to Use Lock Subprocess

Use When:

• Stored procedures use temporary tables or shared state
• Operations must be atomic across the entire subprocess
• Multiple workflow instances might conflict
• Data integrity requires sequential execution

Don't Use When:

• Activities are naturally independent
• Performance is critical and operations are safe to parallelize
• You can redesign to avoid shared state

Best Practices

• Descriptive Names: Use lock names that describe what's being protected
• Minimal Scope: Lock only the activities that truly need serialization
• Timeout Planning: Set timeout slightly longer than expected execution time
• Documentation: Document why the lock is necessary
• Testing: Test with multiple concurrent workflow instances

Comparison to Regular Subprocess

Feature	Subprocess	Lock Subprocess
Grouping	Yes	Yes
Mutual Exclusion	No	Yes
Cross-Workflow	N/A	Yes
Timeout Setting	No	Yes
Performance Impact	Minimal	Can add wait time
