If

The If activity provides conditional branching in your workflow based on C# expressions that evaluate to true or false.

Purpose​

Use the If activity to:

  • Create conditional logic in workflows
  • Branch execution based on workflow parameters or variables
  • Implement decision points based on dates, values, or other conditions

Configuration​

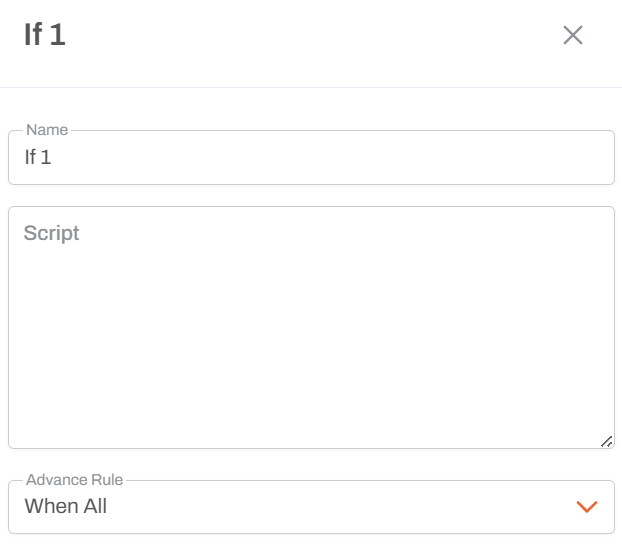

If Activity Editor

Condition Expression​

  • Write a C# expression that returns a boolean (true/false) value
  • The expression is evaluated at runtime
  • Only C# syntax is supported

Exit Paths​

  • Yes/True: Path taken when the condition evaluates to true
  • No/False: Path taken when the condition evaluates to false

Example Expressions​

Date-based Conditions​

DateTime.Now.Year == 2026

Parameter-based Conditions​

"{Year}" == "2026"

Note: {ParameterName} references a workflow parameter value

Numeric Comparisons​

{Count} > 100

String Comparisons​

"{Status}" == "Active"

Usage Notes​

  • Expressions are evaluated when the workflow execution reaches the If activity
  • You can reference workflow parameters using the {ParameterName} syntax
  • Parameters are replaced with their actual values at runtime
  • Most commonly used with workflow parameters obtained from previous steps
  • Keep expressions simple and readable for maintainability

Common Patterns​

Year-based Logic​

DateTime.Now.Year == 2026

Parameter Validation​

!string.IsNullOrEmpty({ClientID})

Threshold Checks​

{Amount} >= 1000

JSON Reference​

{
  "discriminator": "IfWorkflowActivity",
  "activityId": "<uuid>",
  "name": "If",
  "positionX": 0,
  "positionY": 0,
  "advanceRule": 2,
  "script": "Context[\"DQErrors\"].ToString() == \"0\""
}
PropertyTypeDescription
scriptstringCorresponds to the Condition Expression field. A C# boolean expression evaluated against the workflow context. Context is a Dictionary<string, object> available as a variable. Supports {variable} interpolation before evaluation.
