Foreach

The Foreach activity iterates over a collection of dimension members, executing a subprocess for each item independently.

Purpose

Use the Foreach activity to:

• Process multiple members in a loop
• Execute the same operations for each element in the collection
• Handle batch processing scenarios

Behavior

Iteration Model

• Subprocess-Based: Built on the Subprocess activity
• Independent Instances: Each iteration is treated as a separate subprocess instance
• Parallel Support: Iterations execute in parallel
• Collection Processing: Processes items from a dimension query

Structure

Foreach: [Collection]
  └─ Subprocess Instance (for each item)
      ├─ Activity 1
      ├─ Activity 2
      ├─ ... ... ...
      └─ Activity N

Usage Notes

• Each iteration has its own execution context
• The subprocess template is reused for each item
• Items are processed independently
• Progress tracking shows status of each iteration

Common Patterns

Multi-Entity Operations

Foreach: Account List
  └─ Subprocess: Account Operations
      ├─ Validate Account
      ├─ Calculate Balance
      └─ Generate Report

Comparison to Manual Loops

Approach	Foreach Activity	Manual Loop Pattern
Setup	Built-in	Requires custom logic
Clarity	Clear intent	Requires interpretation
Maintenance	Easier	More complex
Error Handling	Per-iteration	Manual implementation
Progress Tracking	Automatic	Manual logging

When to Use

• Processing multiple records or entities
• When iteration logic is straightforward
• When you want clear visualization of iteration status
• When each item requires the same processing steps
• For batch operations with independent items

JSON Reference

{
  "discriminator": "ForeachWorkflowActivity",
  "activityId": "<uuid>",
  "name": "Foreach",
  "positionX": 0,
  "positionY": 0,
  "advanceRule": 2,
  "dimensionQuery": {
    "dimension": "Entity",
    "members": []
  },
  "workflow": {
    "settings": {},
    "activities": [
      {
        "discriminator": "StartWorkflowActivity",
        "activityId": "<new-uuid>",
        "name": "Start",
        "positionX": 0,
        "positionY": 0,
        "advanceRule": 2,
        "preventMultipleActiveRuns": true,
        "dueDateCalculationMode": 0,
        "parameters": []
      }
    ],
    "arrows": []
  }
}

Property	Type	Description

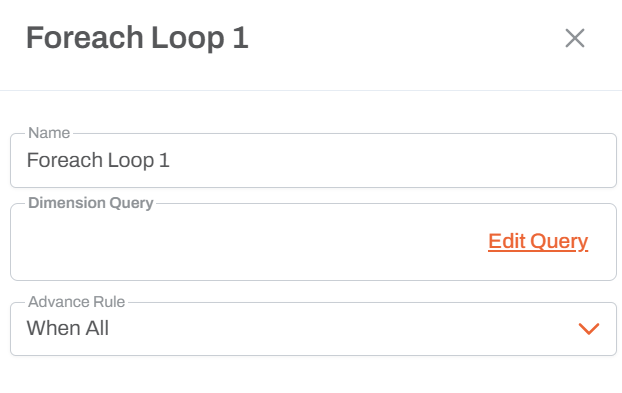

dimensionQuery	object | null	Corresponds to the Collection field. A dimension query object defining which dimension members to iterate over. The current member is available as {burst} inside the subprocess.
workflow	object	The embedded sub-workflow definition (same structure as a top-level WorkflowDefinition). Must contain its own StartWorkflowActivity.
